    Xuguang Chemical Co., Ltd now has four acetylene black production lines with annual capability of 8000MT acetylene black, 100,000 cylinders of acetylene gas, which is one of the biggest acetylene black production base. Acetylene black is used extensively for industry of dry battery, radio components, conductive rubber, plastic, silicone rubber, conductor, cable shielding material, paint, lubricants etc. Our 0, 50% compressed powder products won the silver metal of product quality in China acetylene black industry. With high conductivity, low resistivity, high purity, the products have been sold to USA, Japan, southeast of Asia and so on and has very good reputation both in domestic and overseas market.

  • Acetylene Black

    Acetylene Black Introduction

    Acetylene black is made from calcium carbide. It has the following features: light mass with small specific gravity; large surface area with strong absorption; stable chemical property; good surfaces activity with high conductivity; high purity with low ash and volatile.

    Product Name: Acetylene Black
    CAS No. : 1333-86-4
    EINECS No.: 215-609-9
    Molecelar formula: C
    Molecular Weight: 12.0107
    Fusion point: 3550 °C(lit.)
    Water solubility: Insoluble
    vapor pressure: 205000mmHg at 25°C
    Item Powder 25%compressed 50%compressed 75%compressed 100%compressed
    Apparent specific volume(ml/g) 30~50 20~25 14~17 9~12 7~9
    Iodine absorption  (g/kg)≥ 95 90 85 85 85
    Hydrochloric acid absorption (ml/g) ≥ 4.6 4.5 4.1 3.8 3.5
    Resistivity(Ω.m) ≤ 1.8 1.9 2 2.3 2.5
    pH
    PH value
    6~8 6~8 6~8 6~8 6~8
    Loss on heating(%) ≤ 0.1 0.1 0.1 0.1 0.1
    Ash content(%)≤ 0.1 0.1 0.1 0.1 0.1
    Grit content(%)≤ 0.01 0.01 0.01 0.00 0.00
    Impurities NO NO NO NO NO

    NOTE: Some items could be adjusted in accordance with the customer's requirements.

    Conductive Acetylene Black Specification

    ITEM   50% compressed 75% compressed
    Loss on heating(%) ≤ 0.1 0.1
    Ash content(%)≤ 0.1 0.1
    Grit content(%)≤ 0.003 0.003
    Apparent specific volume(ml/g) 16.0 9.5
    Iodine absorption  (g/kg)≥ 80 80
    Resistivity(Ω.cm) ≤ 0.15 0.21
    PH value 6~8 6~8
    Impurities NO NO
    Oil Absorption Value ml/100g≥ 250 220

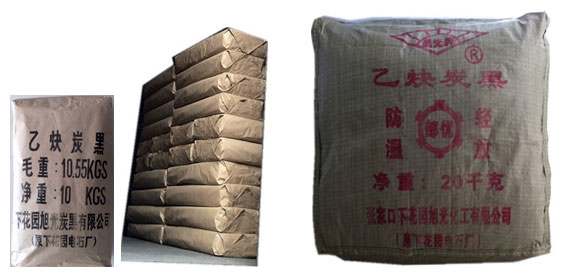

  • Acetylene Black Packing

  • In 5 /10kg net paper bags , four 5kg film PP woven bags compose a 20kg PP woven bag.10KG is packed with four layers kraft paper. The packing is breathable and good moisture proofed, easy to move and transport.

  • Product Usage

  • 1. For making dry batteries, acetylene black can improve conductivity, increase the discharge volume and extend the discharge time.

    2. For battery plate including lead-acid battery, Lithium battery and lithium-ion battery.

    3. Used for conductive and anti-static rubber, silicone rubber as well as plastic, it has the features of small specific gravity, good reinforcement, corrosion-resistant, good processability. The conductivity is easy to control.

    4. Special tires and tire capsule. Acetylene black can work as reinforcing and heat conducting. The vulcanizate reinforced by it has got very high stretch intensity and hardness with good physical properties.

    5. Used for electromagnetic insulation and gas dispersion electrode.
